AUTHENTIC DETAILS

True Form Revealed.

Witness the TSM-R1's precision engineering. Every component is designed for durability, hygiene, and performance.

Highlights

Get the highlights.

Advanced features designed for the modern sushi kitchen.

Specifications

Technical Specifications

Every detail engineered for performance. The complete breakdown of the TSM-R1.

Dimensions & Weight

Engineered for optimal spatial efficiency. The TSM-R1 fits seamlessly into standard commercial kitchen layouts while maintaining ergonomic access for operation and maintenance.

SPEC-SHEET REV 2.4

ISO 9001 CERTIFIED

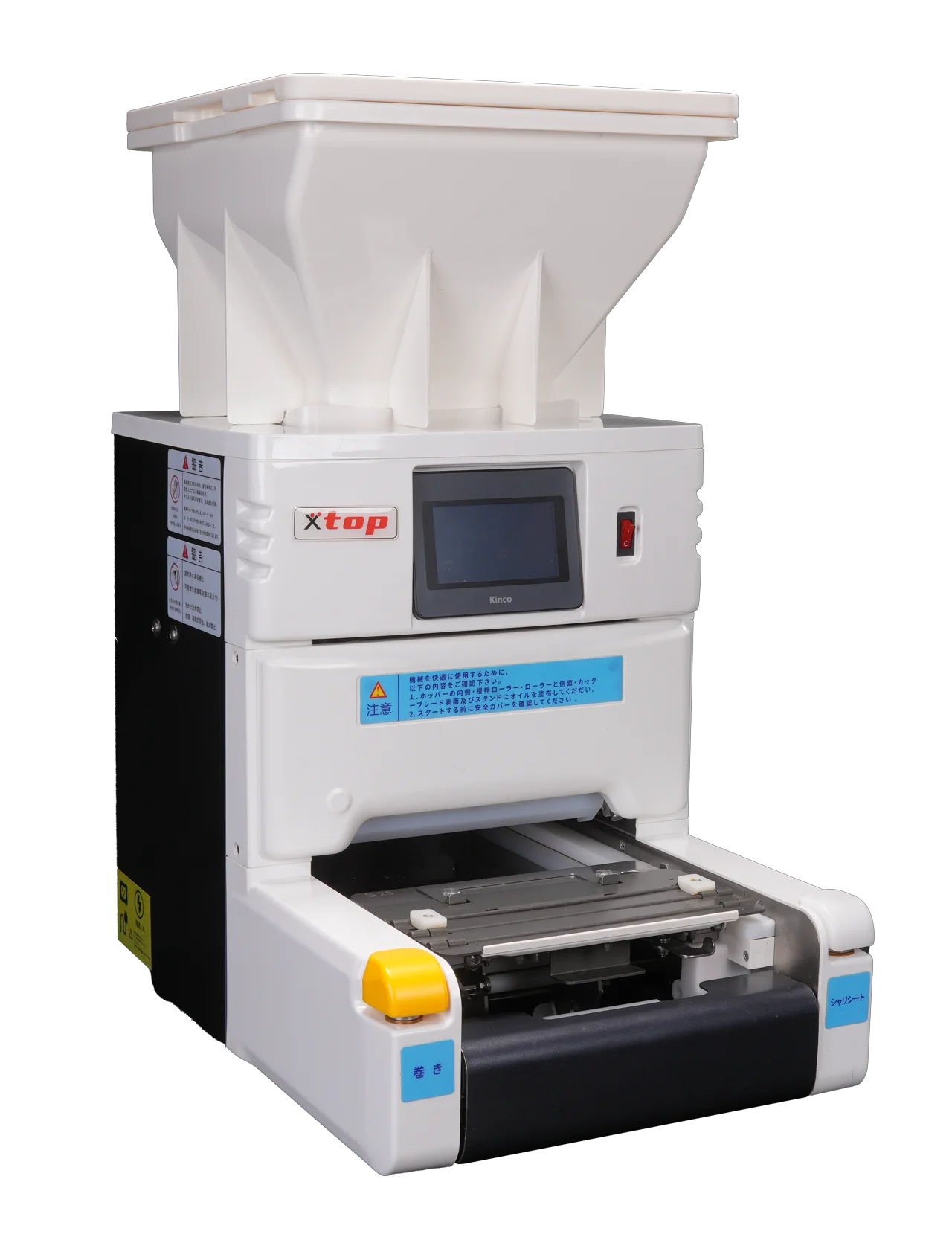

Front Right
Front Right

Physical Specifications

Unit Height
650 mm25.6 in
Unit Width
360 mm14.2 in
Unit Depth
540 mm21.3 in
Net Weight
42.5 kg93.7 lbs
Hopper Capacity
7.5 kg16.5 lbs

Logistics & Installation

Shipping Weight
52.0 kg114.6 lbs
Box Dimensions
730 x 530 x 780 mm~29 x 21 x 31 in
Cable Length
1.5m / 1.8m5ft / 6ft (Region)
Footprint Area
0.30 m²3.23 sq ft
Clearance (Sides)
150 mm6.0 in

Construction & Compliance

Chassis Material
SUS304 Stainless Steel
Food Contact
Fluorine Resin (BPA Free)
IP Rating
IPX3 (Washdown Safe)

Performance Metrics

High-speed production meets artisanal quality. The TSM-R1 delivers consistent sushi rolls with precise density control.

Flagship Model

TESTED @ 25°C AMBIENT

Max Throughput

360rolls / hr

CYCLE TIME: 10-15s / ROLL

Hopper Capacity

7.5kg (cooked)

YIELD: ~50 ROLLS / LOAD

Consistency

100%

SENSOR CONTROLLED

Sheet Parameters

Roll SizesMultiple Molds Available
Small / Medium / Large
Rice DensitySoft / Normal / Hard
Adjustable
Sheet ThicknessPrecise Weight Control
Programmable
Rice TemperatureOptimal Forming Range
35°C - 50°C

Operational Data

Production SpeedDepending on roll type
4-6 Rolls / Min
Cleaning CycleTool-less disassembly
20 Minutes
Noise LevelQuiet operation
< 65 dB
MaintenanceGreasing & calibration
Quarterly

Controls & Interface

High-definition LCD interface designed for intuitive operation. Adjust rice density, sheet size, and rolling tightness with ease.

Smart Touch

IP54 RATED

Digital Interface

Display Type
LCD Color Touch
High Definition
Control Logic
Micro-Controller
Real-time adjustments
Language Support
Multi-Language
Global usability
Memory Slots
Multiple Presets
Save different roll types

Hardware & Safety

Emergency Stop

Physical button cuts power instantly.

Lid Interlock

Machine stops if hopper lid is opened.

Overload Protection

Motor protection against jamming.

Materials & Build Quality

Constructed from premium SUS304 stainless steel and advanced food-grade polymers. Designed for durability and easy sanitation.

Food Safe

NSF COMPLIANT

SUS304 Stainless Steel

Chassis & Frame

Heavy Duty

Non-Stick Polymer

Rice Contact Zones

Food Grade

ABS Resin

Protective Covers

Durable

Structural Specification

Chassis MaterialSUS304 Stainless Steel
ConstructionWelded Frame
Finish#4 Brushed
DurabilityCommercial Grade

Food Contact Zones

Roller MaterialFood Grade Polymer
CoatingNon-Stick Fluorine
Heat ResistanceUp to 90°C
CleaningWashdown Safe Parts

Power & Environment

Universal power compatibility and robust environmental tolerance.

100-240V AC

50/60HZ

Electrical Input

Input Voltage
100-240V AC
● Auto-Switching
Frequency
50 / 60Hz
Max Power
100W
10W Idle Mode
Fuse Rating
5.0A
250V Slow-Blow
Supported Plug Standards
TYPE B (US)
TYPE F (EU)
TYPE G (UK)

Operating Environment

Ambient Temperature5°C — 35°C
0°C50°C
Relative Humidity30% — 80%
Non-condensing environment required.
Heat Dissipation< 350 BTU/hr

What's In The Box

Everything required for immediate operation.

Complete Kit

QC PASSED

Main Unitx1

TSM-R1 Machine

TSM-R1-MAIN

Main sushi rolling unit.

Accessoriesx1

Hopper Lid

ACC-LID

Safety cover.

Accessoriesx1

Power Cord

ACC-PWR

Region specific cable.

Maintenancex1

Cleaning Kit

MNT-KIT

Brushes and tools.

Maintenancex1

Lubricant

MNT-OIL

Food grade oil.

Docsx1

User Manual

DOC-MAN

Operation guide.
