AUTHENTIC DETAILS

True Form Revealed.

From the precision-engineered drum to the robust stainless steel chassis, every angle reflects our commitment to quality.

Highlights

Get the highlights.

Advanced features designed for the modern sushi kitchen.

Specifications

Technical Specifications

Compact and efficient. The desktop solution for consistent sushi rice preparation.

Dimensions & Weight

Space-saving desktop design. Ideal for small kitchens and tight spaces.

SPEC-SHEET REV 1.5

CE CERTIFIED

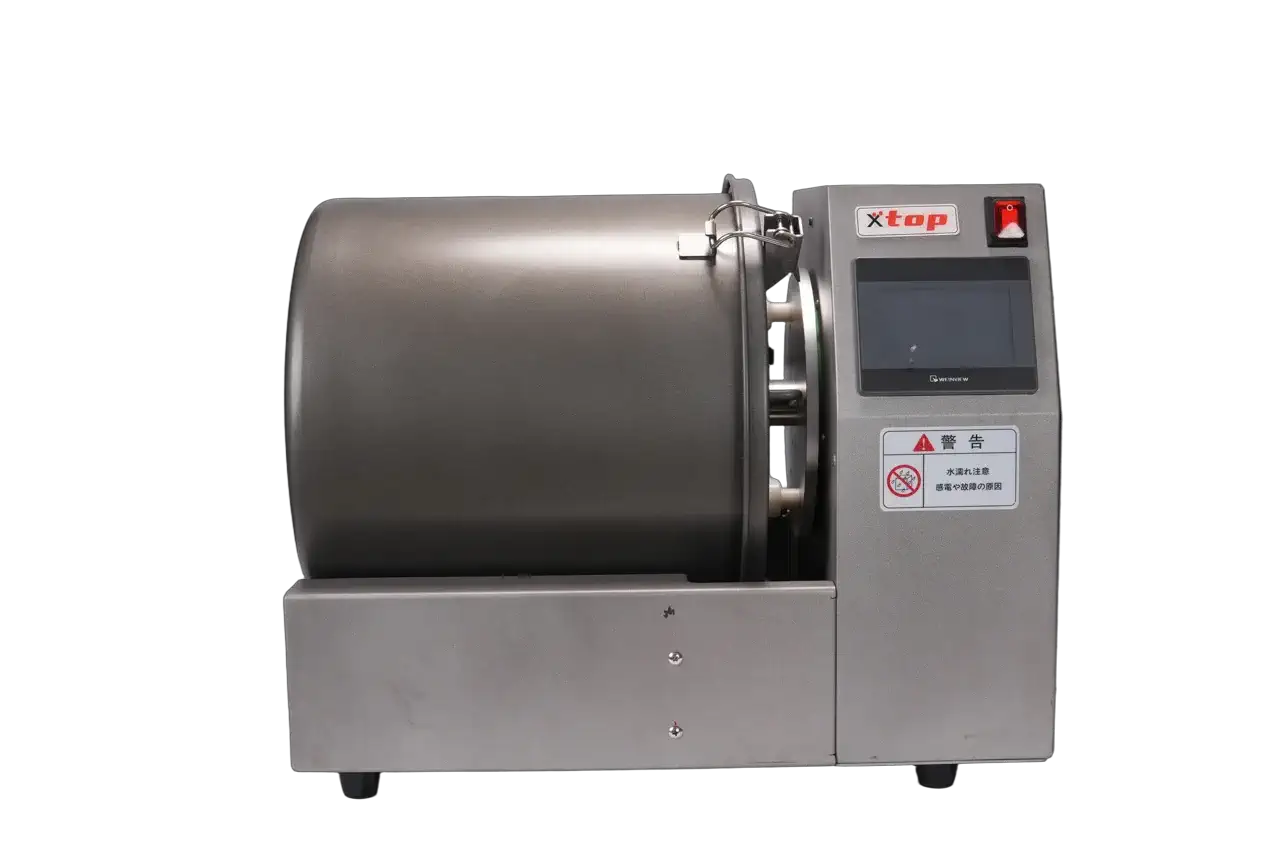

Front View
Front View

Physical Specifications

Unit Height
480 mm18.9 in
Unit Width
560 mm22.0 in
Unit Depth
400 mm15.7 in
Net Weight
30.0 kg66.1 lbs
Hopper Capacity
6.0 kg13.2 lbs

Logistics & Installation

Shipping Weight
40.5 kg89.3 lbs
Box Dimensions
750 x 510 x 570 mm~29.5 x 20.1 x 22.4 in
Cable Length
1.5m / 1.8m5ft / 6ft (Region)
Footprint Area
0.22 m²2.4 sq ft
Clearance (Top)
300 mm12 in

Construction & Compliance

Chassis Material
SUS304 Stainless Steel
Food Contact
Fluorine Resin (BPA Free)
IP Rating
IPX3
Certifications
CE

Performance Metrics

Fast processing for small batches. Perfect for on-demand rice preparation.

Desktop Series

TESTED @ 25°C AMBIENT

Cycle Time

5min / batch

QUICK TURNAROUND

Capacity

6kg / batch

SMALL BATCH OPTIMIZED

Quality

100%

CONSISTENT TEXTURE

Sheet Parameters

FunctionAutomated
Mix / Cool
Rice TypeStandard Grain
Sushi Rice
CoolingBuilt-in
Fan Assisted
ConsistencyEven Coating
Uniform

Operational Data

ThroughputHigh Efficiency
6kg / 5 min
CleaningWipe Clean
5 Minutes
NoiseQuiet Motor
< 60 dB

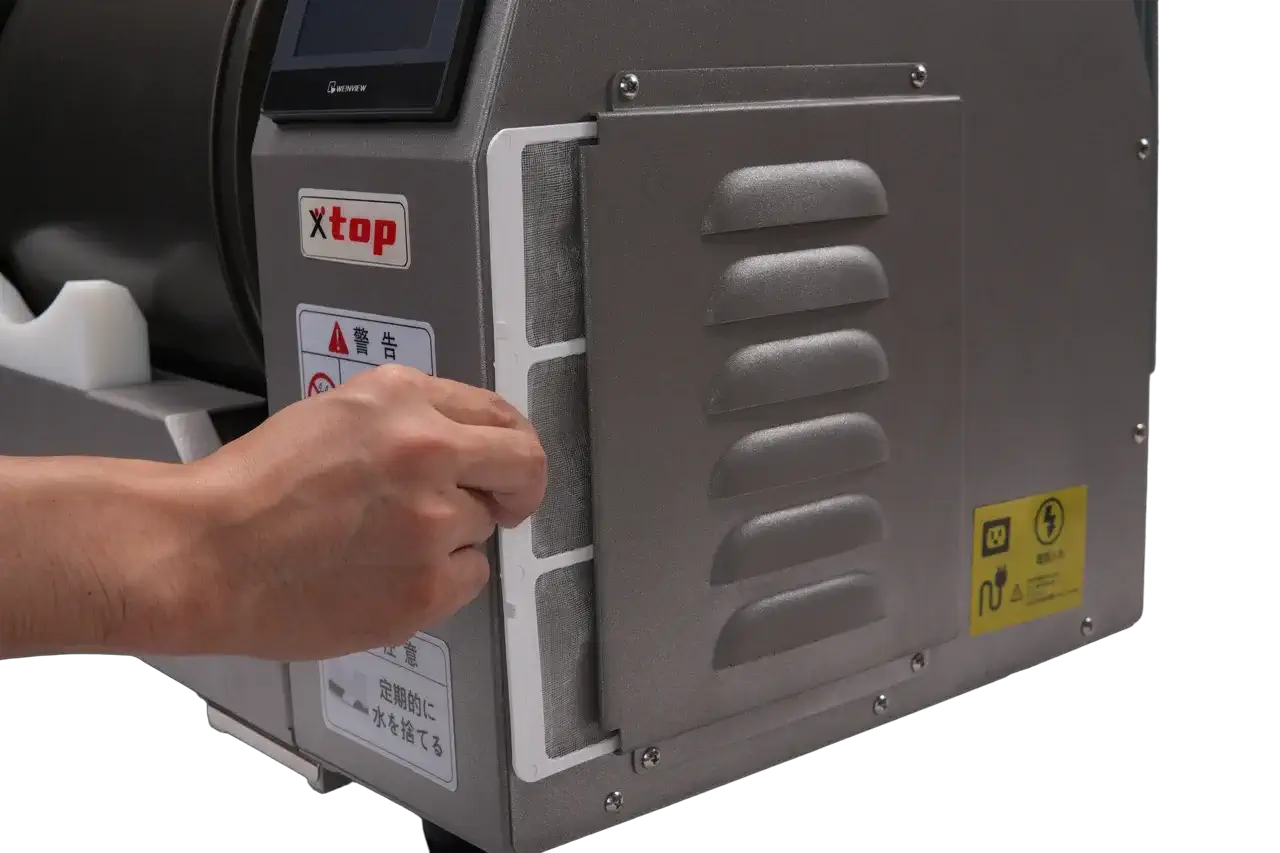

MaintenanceFilter Check
Minimal

Controls & Interface

Simplified control panel. Designed for ease of use in busy environments.

Simple UI

ANALOG FEEL

Digital Interface

Control
Push Button
Reliable
Indicators
LED
Status Light
Timer
Preset
Optimized Cycles
Stop
Instant
Manual Interrupt

Hardware & Safety

Lid Sensor

Stops motor if lid is removed.

Anti-Slip

Rubber feet for stability.

Overload

Circuit protection.

Materials & Build Quality

Compact body with professional grade materials. Durable and hygienic.

Compact

CE CERTIFIED

Stainless Steel

Housing

Durable

Resin Drum

Mixing Bowl

Lightweight

Compact Frame

Structure

Rigid

Structural Specification

HousingSUS304
DrumHigh Impact Resin
DesignErgonomic
WeightPortable (30kg)

Food Contact Zones

Drum CoatingNon-Stick
MaterialFood Safe
CleaningWashable
SafetyBPA Free

Power & Environment

Low power consumption, works on standard outlets.

100-240V

100W ECO

Electrical Input

Input Voltage
100-240V AC
● Auto-Switching
Frequency
50 / 60Hz
Max Power
100W
10W Idle Mode
Fuse Rating
3.0A
250V Slow-Blow
Supported Plug Standards
TYPE B (US)
TYPE F (EU)
TYPE G (UK)

Operating Environment

Ambient Temperature5°C — 35°C
0°C50°C
Relative Humidity30% — 80%
Non-condensing environment required.
Heat Dissipation< 150 BTU/hr

What's In The Box

Compact unit with essential accessories.

Desktop Unit

READY TO USE

Unitx1

TSM-S2 Mixer

TSM-S2-MAIN

Desktop unit.

Partx1

Mixing Drum

PRT-DRM-S

Small drum.

Partx1

Lid

PRT-LID-S

Safety lid.

Powerx1

Cable

PWR-CBL

Standard cable.

Toolx1

Spatula

TL-SPT

Rice tool.

Docx1

Manual

DOC-USR

Instructions.
